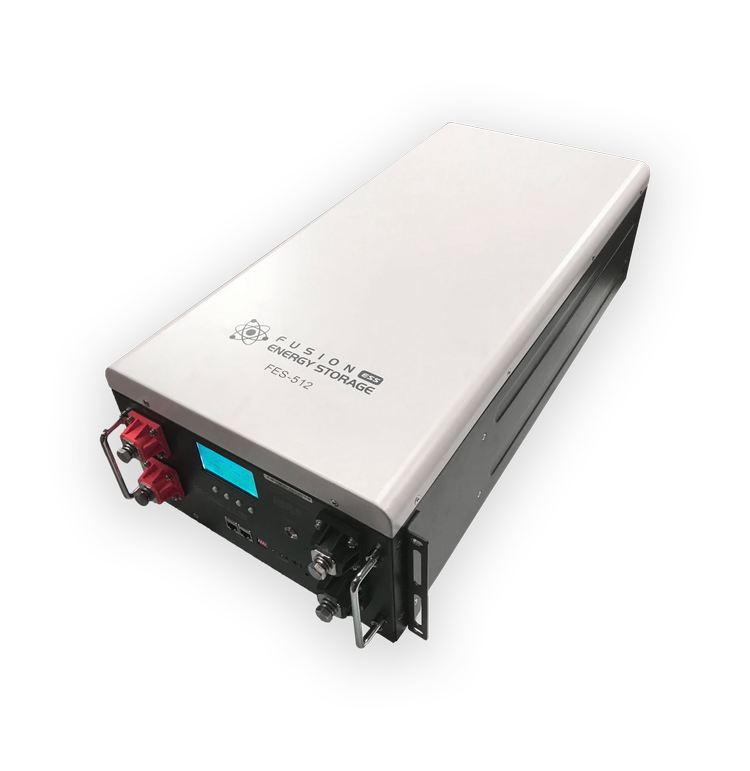

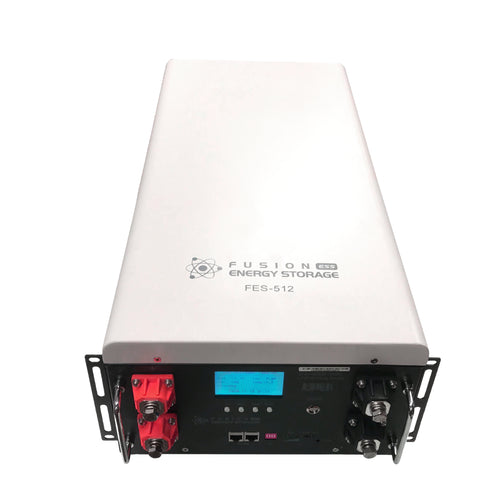

Designed for easy installation into residential, commercial, or utility-scale projects. Fusion ESS Lithium Iron Phosphate (LiFePO4) batteries are available as 51.2V-100Ah (5.12 kWh) modules. They are also designed to be connected in parallel to up to 81.92 kWh of storage. Our High-Performance LiFePO4 energy storage system is easy to install, safe, and consistently reliable. It provides the lowest lifetime energy cost for both new solar customers and retrofit customers. Fusion ESS can be integrated with industry-standard solar charge controllers, inverters, and energy management systems. Financing solutions are available for any project size.
The phosphate (LiFePO4) battery module is specifically designed for high-capacity and high-performance residential, commercial, and utility-scale energy storage systems. These ESS battery modules can be placed parallel for energy storage systems up to 81.92 kWh of total capacity. The ESS will integrate with any inverter or solar charge controller.
Longer Cycle Life: Offers a significantly longer cycle life and longer float/calendar life than lead-acid batteries helping to minimize replacement cost and reduce the total cost of ownership. LiFePO4 batteries are designed for 10,000 cycles at 50% DOD, 6,000 cycles at 80% DOD, and 2,000 cycles at 95% DOD.
More Energy: Delivers significantly more energy than lead-acid batteries, even at a high discharge rate while maintaining high energy capacity.
Advanced BMS Protection: Under/Over voltage and current protection ensure safe and efficient operation.
Safety: Advanced LiFePO4 cell design includes various safeguards including high temp thermal fuse and flame retardant additive.
Increased Flexibility: This LiFePO4 battery module is designed to be connected in parallel for applications up to 81.92 kWh. The modules are fitted into a cabinet for ground mount configuration with simple installation.
Protective Weatherproof Cabinet: Designed with a secure key lockable door with UV protective glass.
Clear Visual Display: LCD display showing voltage, current, SOC and temperature for each individual module.
Fusion Energy Storage Systems (ESS)
Designed for easy installation into residential,commercial, or utility
scale projects.
Fusion ESS Lithium Iron Phosphate {LiFePO4) batteries are available
as 51.2V-100Ah {5.12 kWh) modules and are designed to be
connected in parallel up to 81.92 kWh of storage.
Our High-Performance LiFePO4 energy storage system is easy to
install, safe, and consistently reliable. It provides the lowest lifetime
energy cost for both new solar customers and retrofit customers.
Fusion ESS can be integrated with industry standard solar charge
controllers, inverters, and energy management systems. Financing
solutions are available for any project size.

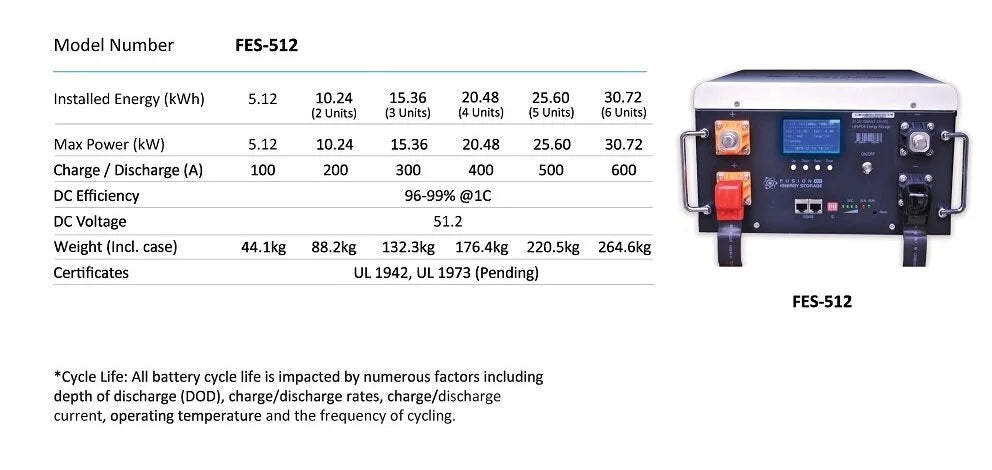

PERFORMANCE SPECIFICATIONS
Model Number FES-512
Nominal Voltage 51.2V
Nominal Capacity 100 Ah (C5,25C)
Energy 5.12 kWh
Internal Resistance ≤40mΩ
Cycle Life >10,000 @50% DOD
>6,000 @80% DOD
>2,000 @95% DOD
Retained Capacity 80% at 10,000 Cycles
Self Discharge Rate <1% per month
Efficiency of Charge 100% @0.5C
Efficiency of Discharge 96~99% @1C
CHARGE SPECIFICATIONS
Charge Voltage 57.0±0.2V
Charge Mode CC/CV 57.0V / Float 55.2V
Charge Current ≤ 100A = 1C
Charge Cut-off Voltage 45.0V ± 0.2V
DISCHARGE SPECIFICATIONS
Max Continuous Current ≤ 100A = 1C = 1Hr
Reserve Capacity @500W > 10 Hours
Reserve Capacity @1000W > 5 Hours
Discharge Cut-off Voltage 44.8V
MECHANICAL SPECIFICATIONS
Case Steel
Dimensions
(W x D x H) (645.5mm x 300mm x 177 mm)
Weight (Incl. case) 44.1 kg
ENVIRONMENTAL SPECIFICATIONS
Charge Temperature -5°C to 55°C
@60±25% Relative Humidity
Discharge Temperature -30°C to 55°C
@60±25% Relative Humidity
Storage Temperature 0°C to 55°C
@60±25% Relative Humidity
Ingress Protection Rating IP65
The 51.2V-100Ah (5.12kWh) FUSION ESS Lithium Iron
Phosphate (LiFePO4) battery module is specifically designed for
high capacity and high performance residential, commercial,
and utility scale energy storage systems.These ESS battery modules can be placed parallel for energy
storage systems up to 81.92 kWh of total capacity. These ESS
will integrate with any inverter or solar charge controller.
Features
Longer Cycle Life: Offers a significant longer cycle life and
longer float/calendar life than lead acid batteries helping to
minimize replacement cost and reduce total cost of ownership.
LiFePO4 batteries are designed for 10,000 cycles at 50% DOD,
and 6,000 cycles at 80% DOD, and 2,000 cycles at 95% DOD.
More Energy: Delivers significantly more energy than lead acid
batteries, even at high discharge rate while maintaining high
energy capacity.
Advanced BMS Protection: Under/Over voltage and current
protection ensuring safe and efficient operation.
Safety: Advanced LiFePO4 cell design includes various
safeguards including high temp thermal fuse, and flame
retardant additive.
Increased Flexibility: This LiFePO4 battery module is designed
to be connected in parallel for applications up to 81.92 kWh.

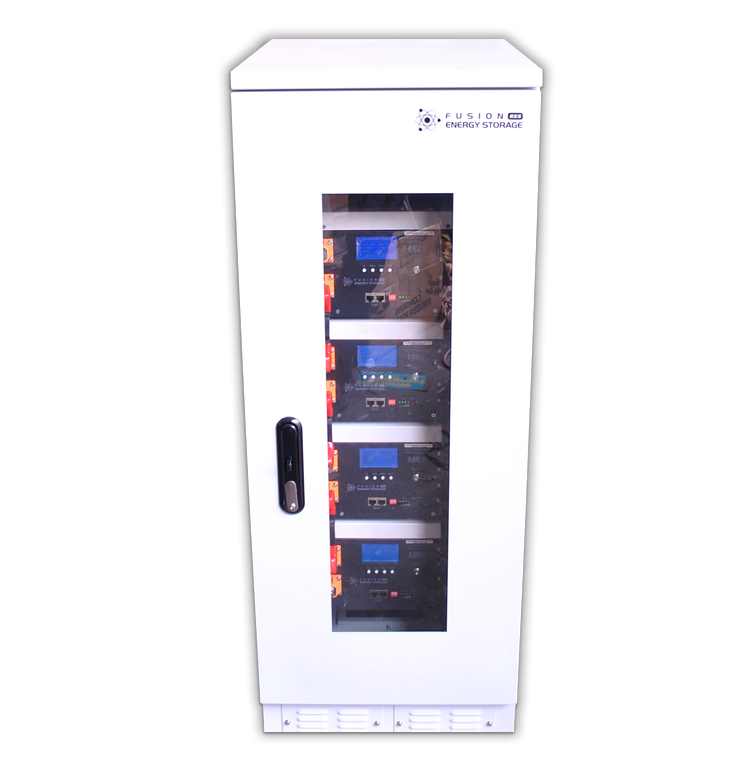

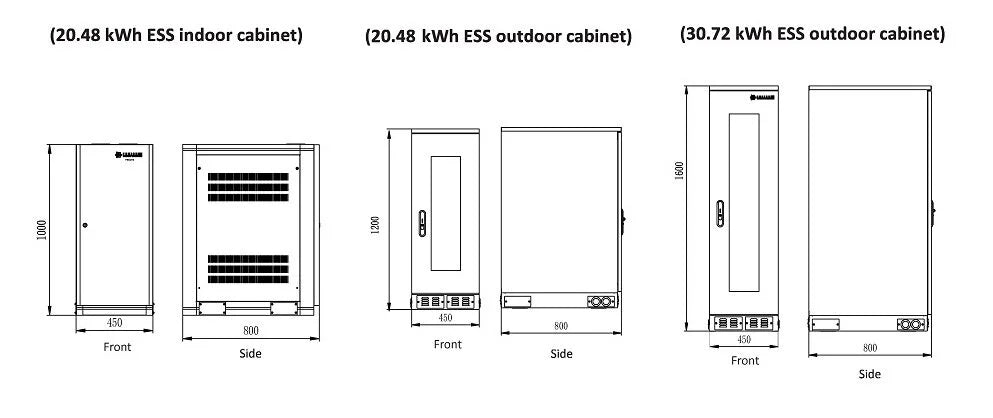

The modules are fitted into a cabinet for ground mount
configuration with simply installation.

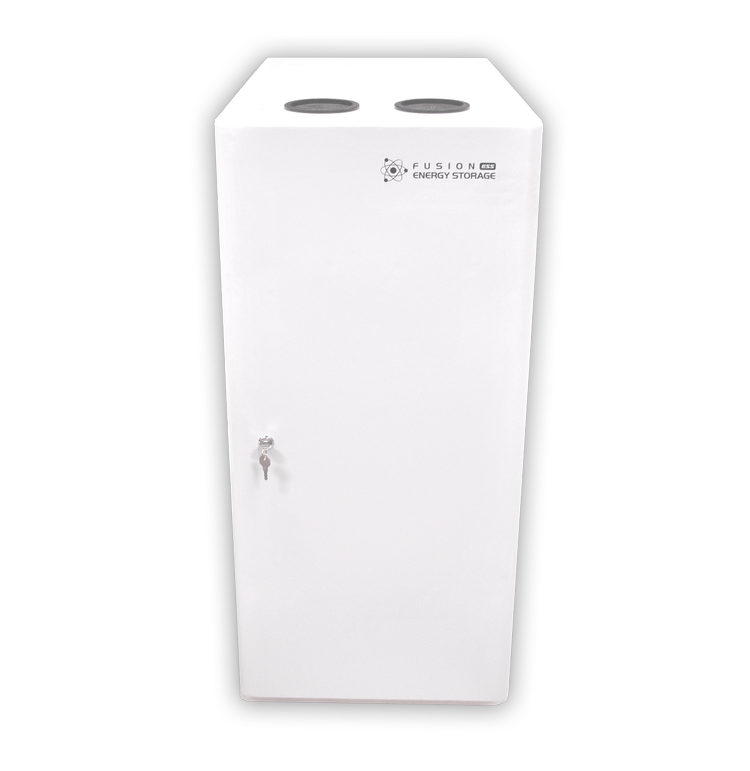

Protective Weatherproof Cabinet: Designed with a secure key
lockable door with UV protective glass.

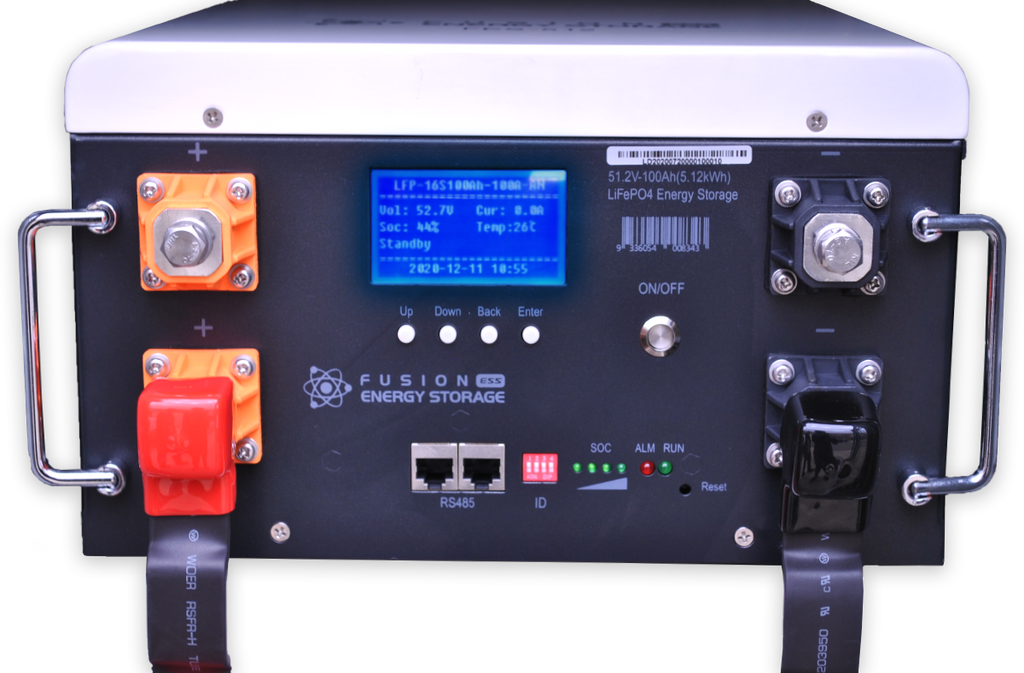

Clear Visual Display: LCD display showing voltage,current,SOC
and temperature for each individual module.
Residential and Commercial
5.12 - 81.92 kWh Energy Storage
Due to continuing product improvements, Fusion reserves the
right to change specifications without notice. For most current
data, please contact your Fusion Energy Storage representative.
BMS TEMPERATURE PROTECTION
≥ 70°C or < -15°C
< -20°C or >75°C
≤ -5°C or > 65°C
≤ -10°C or >70°C
BMS discharging turn on temperature
BMS discharging cut off temperature
BMS charging turn on temperature
BMS charging cut off temperature
PCB Temp over 95°C protecting
