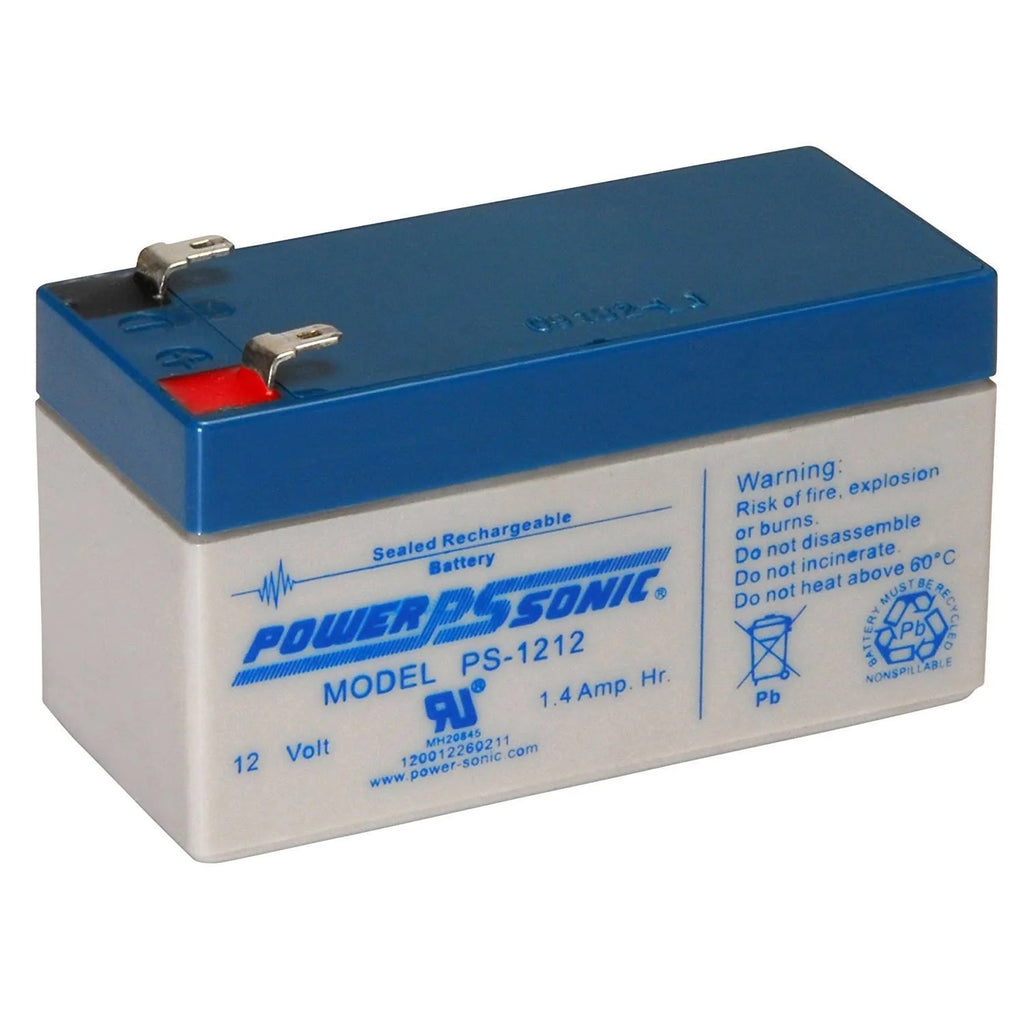

A45 AMG (N000000004039) Auxiliary Battery - PS1212

: In stock

: Batteries

: Powersonic

$45.00 $79.00

Powersonic- PS1212 12 v 1.4AH DIMENSIONS: inch (mm) L: 3.78 (96)W: 1.69 (43)H: 2.04 (52)HT: 2.28 (58)Tolerances are +/- 0.04 in.(+/- 1mm)...

QUESTIONS & ANSWERS

Have a Question?

Be the first to ask a question about this.

Ask a Question

Powersonic- PS1212 12 v 1.4AH

DIMENSIONS: inch (mm)

L: 3.78 (96)
W: 1.69 (43)
H: 2.04 (52)
HT: 2.28 (58)
Tolerances are +/- 0.04 in.
(+/- 1mm) and +/- 0.08 in.
(+/- 2mm) for height
dimensions.

PERFORMANCE SPECIFICATIONS
Nominal Voltage 12 volts (6 cells)
Nominal Capacity
20-hr. (70mA to 10.50 volts)
10-hr. (130mA to 10.50 volts)
5-hr. (240mA to 10.20 volts)
1-hr. (850mA to 9.00 volts)
1.40 AH
1.30 AH
1.20 AH
0.85 AH
Approximate Weight 1.20 lbs. (0.54 kg)
Internal Resistance (approx.) 100.0 milliohms
Max Short-Duration Discharge Current (10 Sec.) 14.0 amperes
Shelf Life (% of nominal capacity at 68°F (20°C)
1 Month
3 Month
6 Month
97%
91%
83%
Operating Temperature Range
Charge
Discharge
5°F (-15°C) to 122°F (50°C)
-4°F (-20°C) to 140°F (60°C)
Case ABS Plastic
Power Sonic Chargers PSC-12300A-C
PSC-12300-PC

FEATURES
• Absorbent Glass Mat (AGM) technology for
superior performance
• Valve regulated, maintenance free spill proof construction
• Power/volume ratio yielding excellent energy density
• Rugged vibration and impact resistant ABS case
and cover
• Gas recombination technology
• 5 year design life
APPROVALS
• Approved for transport by air. D.O.T., I.A.T.A., F.A.A.
and C.A.B. certified
• U.L. recognized
• ISO9001:2015 – Quality management systems
