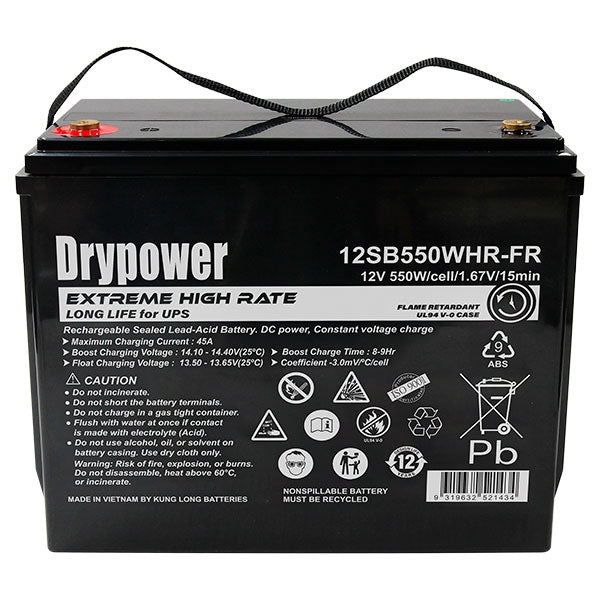

Deep cycle Battery 12V 140Ah 550W/Cell (15min) EXTREME High Rate Long Life battery

Availability: In stock

Product type: Batteries

Vendor: MI

$599.00 ~~$699.00~~

Drypower 12SB550WHR-FR 12V 140Ah 550W/Cell (15min) EXTREME High Rate Long Life battery The new Drypower EXTREME High Rate Long Life series...

QUESTIONS & ANSWERS

Have a Question?

Be the first to ask a question about this.

Ask a Question

12V 140Ah 550W/Cell (15min) EXTREME High Rate Long Life battery

The new Drypower EXTREME High Rate Long Life series has been designed specifically for extreme high rate discharge & long design life in floating service applications.

12SB550WHR-FR 12V 550W/Cell down to 1.67V (15 Minute Rate)

Suitable for applications such as:

UPS
Data Centres
Telco Base Stations
Emergency Power Supplies
Security
Fire Alarms
Emergency Lighting

Improvements to the batteries internal grid structure has resulted in improved energy density & a more stable performance wherever high power & short-term backup discharge are required.

Features & Benefits

LONG design life in float service
High rate discharge construction.
Low self-discharge rate and high reliability.
Complies with IMDG Special Provision 238.
Complies with IATA/ICAO Special Provision A67 for air transport.
Extreme energy density, small footprint, increased power (15% to 20% above standard high-rate batteries).
Uses Absorbed Glass Mat (AGM) technology, and the electrolyte is absorbed in fiberglass separators. The gas recombination efficiency is up to 99%.
UL94 V-0 Flame Retardant Case
9-12 Year design life
Fully recycleable

Suitable replacement for: PHR-12500, XP-12500, UPS12-490 MR, HFS12-540W-X, HRL12500W, HR5000, 12HX505, S12V500, NSB 12-540FT, PRC-12150C

Product Details

Selling Unit	EACH
Model No	12SB550WHR-FR
Inventory Code	60000-997
Brand
Description	12V 140Ah 550W/Cell (15min) EXTREME High Rate Long Life battery
Application	UPS, Data Centres, Telco Base Stations, Emergency Power Supplies, Security, Fire Alarms, Emergency Lighting
Chemistry	Sealed Lead Acid (SLA)
Voltage	12V
Watts Per Cell	550W
Nominal Capacity	140Ah
Termination	F8 (M6 Bolt)
Width	338mm
Height	281mm
Length / Breadth / Depth	173mm
Weight	45500g
