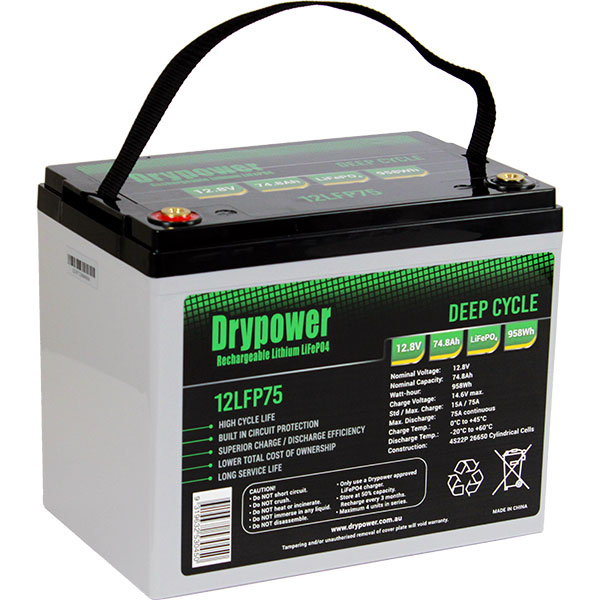

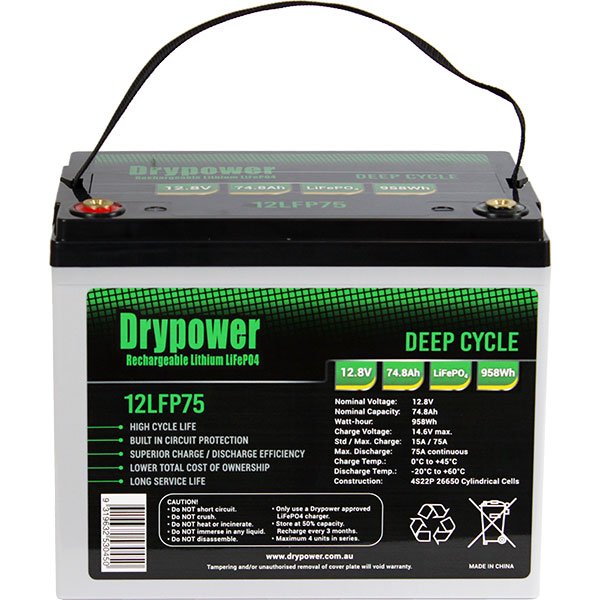

12V Lithium Iron Phosphate battery. Ideal for sealed lead battery replacement
4S22P-Cylindrical Construction
Specifications:
- Cycle life: >2000 cycles (100% DoD to 80% of original capacity) @ 25°C
- Max. continuous discharge current: 75A
- Charge voltage: 14.2V - 14.6V (14.2V recommended)
- Standard charge Current: 15A
- Max. cont. charge current: 75A
- Operating Discharge temperature: -20°C to +60ºC
- Operating Charge temperature: +0°C to +45ºC
- Storage temperature: -20°C to +45ºC
- Operating Humidity (non-condensing): 5%-85%
- Series Connection: Up to 4S
- Parallel Connection: Nil
| Model No | 12LFP75 | ||
| Inventory Code | 89006-011 | ||
| Categories |
Lithium Ion Batteries Lithium Iron Phosphate Battery Packs 12 Volt Series LiFePO4 Drypower Lithium Iron Phosphate Battery Packs Lithium Iron Phosphate Modules |
||
| Selling Unit | EACH | ||
| Description | High power 12.8V 74.8Ah lithium iron phosphate (LiFePO4) rechargeable battery | ||
| Application | Caravan/RV/camping, mobility, marine, medical, solar, and more | ||
| Chemistry | Lithium Iron Phosphate (LiFePO4) | ||
| Voltage | 12.8V | ||
| Nominal Capacity | 74.8Ah | ||
| Watt Hour | 957.4Wh | ||
| Maximum Continuous Discharge Current |
75A | ||
| Termination | F18 (M8 Bolt) | ||
| Size | 4S22P | ||
| Width | 168mm | ||
| Height | 211mm | ||
| Length/Breadth/Depth | 260mm | ||
| Weight | 9650g | ||
| Brand |  |
||
