Invicta 12V 100AH Slimline Lithium Battery LFP with Bluetooth SNLFT12V100BT

: In stock

:

: INVICTA

Regular price $1,549.00

  Invicta 12V 100AH Slimline Lithium Battery LFP with Bluetooth SNLFT12V100BT SNLFT12V100BT Specifications sheet The Invicta Lithium 12V family is comprised of the popular...

QUESTIONS & ANSWERS

Have a Question?

Be the first to ask a question about this.

Ask a Question

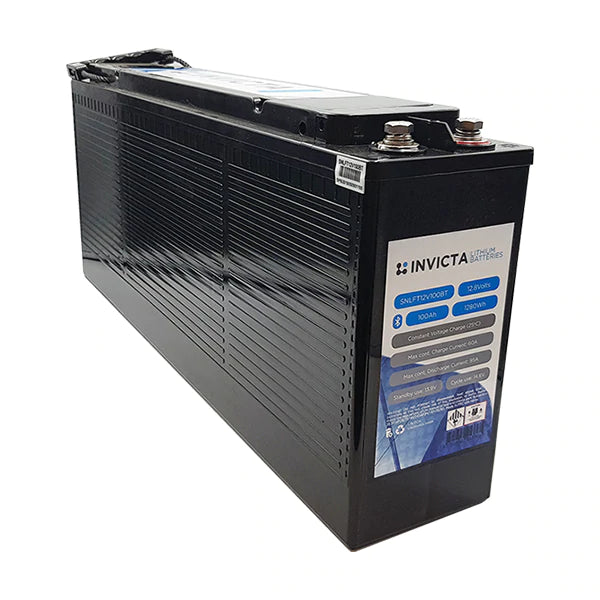

Invicta 12V 100AH Slimline Lithium Battery LFP with Bluetooth SNLFT12V100BT

SNLFT12V100BT Specifications sheet

The Invicta Lithium 12V family is comprised of the popular sizes found in the lead acid range but with the added benefits of Lithium Iron Phosphate (LiFePO4) technology and is ideally suited to deep cycle longer run time applications.

Invicta batteries are available in 12V, 24V and 36V single battery systems and can be used in a range of applications including 4x4, caravans, marine and commercial/industrial. All Invicta batteries have an integrated BMS that protects the battery from over charge/discharge, temperature, and short circuit. Additional to the Invicta 12V200Ah and 12V300Ah are inverter friendly capabilities.

The batteries also feature an aluminium encased LiFePO4 prismatic cell that are bolted together using a solid busbar for strength. A strengthening frame is utilised in order to reduce movement and vibration in off-road vehicles and marine applications.

Specifications:

  • Amp Hours 100.0Ah
  • Battery Voltage 12V
  • Standby Current 13.8V
  • Operating Temperature Range Charge (0-50), Discharge (-2 -55)
  • Nominal Voltage 12.8V
  • Nominal Capacity 100Ah
  • Total Charge Current 95A
  • Cycle Life (DOD – 80% under controlled conditions) > 2000
  • Maximum Charge Current 14.6V
  • Recommended Charge Current for Maximum Life <50A
  • Maximum Discharge Current 95A
  • Pulse Discharge Current 350A
  • Charge Cutt-off Voltage 10V
  • Weight 12.2kg
  • Warranty 7 Years - See Warranty Tab for full Terms & Conditions
  • Certification IEC 62619 & IEC 62133



Features:

  • Large number of cycles >2000 (100% DoD)
  • Safe and stable chemistry & Integrated BMS
  • Greater capacity utilisation
  • 60% more than SLA Gives longer runtime than equivalent SLA
  • High energy density (less than half of the weight of SLA) lowering total weight of application
  • Fast recharge Battery
  • Flat Discharge Curve
  • Longer run time
  • Efficient use of capacity.
  • Extremely low self-discharge rate
  • Can sit unused for longer periods of time
  • UL1642 at cell level



Bluetooth Connectivity:

Bluetooth monitoring via a free mobile application allows you to monitor the status of the battery’s volts, remaining capacity, current draw, and status of the Battery Management System (BMS). The Bluetooth capabilities can also be used to help troubleshoot system issues.

Real-life Testing:

The Invicta batteries are independently tested by BMRPO to ensure all batteries uphold the highest level of quality. The real-life testing shows that Invicta easily surpassed over 2000 cycles over 1000 days of continuous use under Australian conditions.

Commercial and Industrial Applications:

The Invicta batteries are IEC 62619 (selected models) and IEC 62133 certified. These certifications are independent and rigorous tests that ensures the battery and BMS can withstand short circuit, propagation, high impact, thermal abuse (extreme heat and cold), and over-charge and discharge situations.

Series and Parallel Configurations:

The Invicta batteries are capable of being paralleled. Please see the Operation Manual below for conditions.

Important Safety Guidelines:

  • Do not install the battery upside down (However, it can be installed on either side)
  • Not for under bonnet use
  • Not for starting applications
  • Must be used with a lithium profile setting charger
  • When using an inverter ensure that the in-rush current of the inverter does not exceed the pulse discharge of the battery



Model Description Length Width Height Terminal
Type
Nominal
Voltage
Nominal
Capacity
Max
Discharge
Current
Max
Series/
Parallel
Config.
Weight Kgs
SNL12V9S Invicta 12V9AH 151 65 95 F2 12.8 9 9.0 4P or 4S 1.2
SNL12V12S Invicta 12V12AH with 4 series functionality 151 98 96 F2 12.8 12 15.0 4P or 4S 1.6
SNL12V20S Invicta 12V20AH with 4 series functionality 180 76 166 M6 12.8 20 25.0 4P or 4S 3.0
SNL12V20BT Invicta 12V20AH with Bluetooth 180 76 166 M6 12.8 20 30.0 4P 3.0
SNL12V24S Invicta 12V24AH with 4 series functionality 166 176 125 M6 12.8 24 30.0 4P or 4S 3.4
SNL12V40S Invicta 12V40AH with 4 series functionality 194 132 170 M6 12.8 40 50.0 4P or 4S 5.5
SNL12V75S Invicta 12V75AH with 4 series functionality 260 169 215 M8 12.8 75 50.0 4P or 4S 9.8
SNL12v100S Invicta 12V100AH with 4 series functionality 306 168 216 M8 12.8 100 95.0 4P or 4S 12.2
SNL12V100BT Invicta 12V100AH with Bluetooth 306 168 216 M8 12.8 100 95.0 4P 12.2
SNL12V125S Invicta 12V125AH with 4 series functionality 318 165 215 M8 12.8 125 95.0 4P or 4S 14.8
SNL12V125BT Invicta 12V125AH with Bluetooth 318 165 215 M8 12.8 125 100 4P 14.8
SNL12V300BT Invicta 12V300AH with Bluetooth 518 271 222 M8 12.8 300 200.0 4P 35.0
SNLFT12V50BT Invicta 12V50AH Slimline with Bluetooth 277 106 222 M6 12.8 50 50 4P 6.0
SNLFT12V100BT Invicta 12V100AH Slimline with Bluetooth 551 109 239 M8 12.8 100 95 4P 12.4
SNL24V50BT Invicta 24V50AH with Bluetooth 318 165 215 M8 25.6 50 50 4P 12.8
SNL24V100BT Invicta 24V100AH with Bluetooth 485 170 245 M8 25.6 100 100 4P 24.2
SNL24V150BT Invicta 24V150AH with Bluetooth 518 271 222 M8 25.6 150 95 4P 35.0
