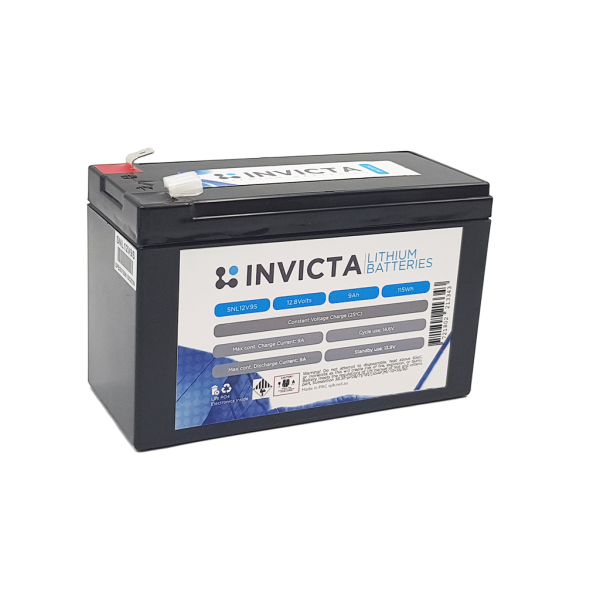

Invicta 12V 9Ah Lithium Battery with 4 Series Functionality

: In stock

:

: INVICTA

$149.00 $199.00

Invicta LiFeP04 lithium batteries: Invicta lithium is designed to the highest specifications to deliver a premium solution that has been proven to...

QUESTIONS & ANSWERS

Have a Question?

Be the first to ask a question about this.

Ask a Question

Invicta LiFeP04 lithium batteries:

Invicta lithium is designed to the highest specifications to deliver a premium solution that has been proven to perform. Consisting of high-grade aluminium LiFePO4 prismatic cells, solid busbar connectors and an integrated BMS, Invicta lithium is a reliable and robust lithium battery for those that need complete confidence in their system.Our integrated BMS has been engineered for the Australian market and is a robust component that provides automated protection against overcharge/discharge, temperature, short circuit, which can be monitored with Bluetooth models.

Specifications:

Model:

SNL12V9S

Brand:

Invicta

Nominal Voltage:

12.8V

Nominal capacity (25°C, 0.33C):

9Ah

Terminal:

F2

Dimensions (LxWxH):

151x65x95mm

Weight:

1.2kg

Max charge voltage:

14.6V

Standby:

13.8V

Low voltage cut off:

10V

Max discharge current:

9A

Max pulse discharge current (3 sec):

35A

Max charge current:

9A

Recommended charge current:

 <5A

Cycle life (100% DOD):

>2000

Operating temperature - charge (°C):

-0 - +50

Operating temperature - discharge (°C):

-20 - +55

Bluetooth:

No

Max series / parallel configuration:
4P
