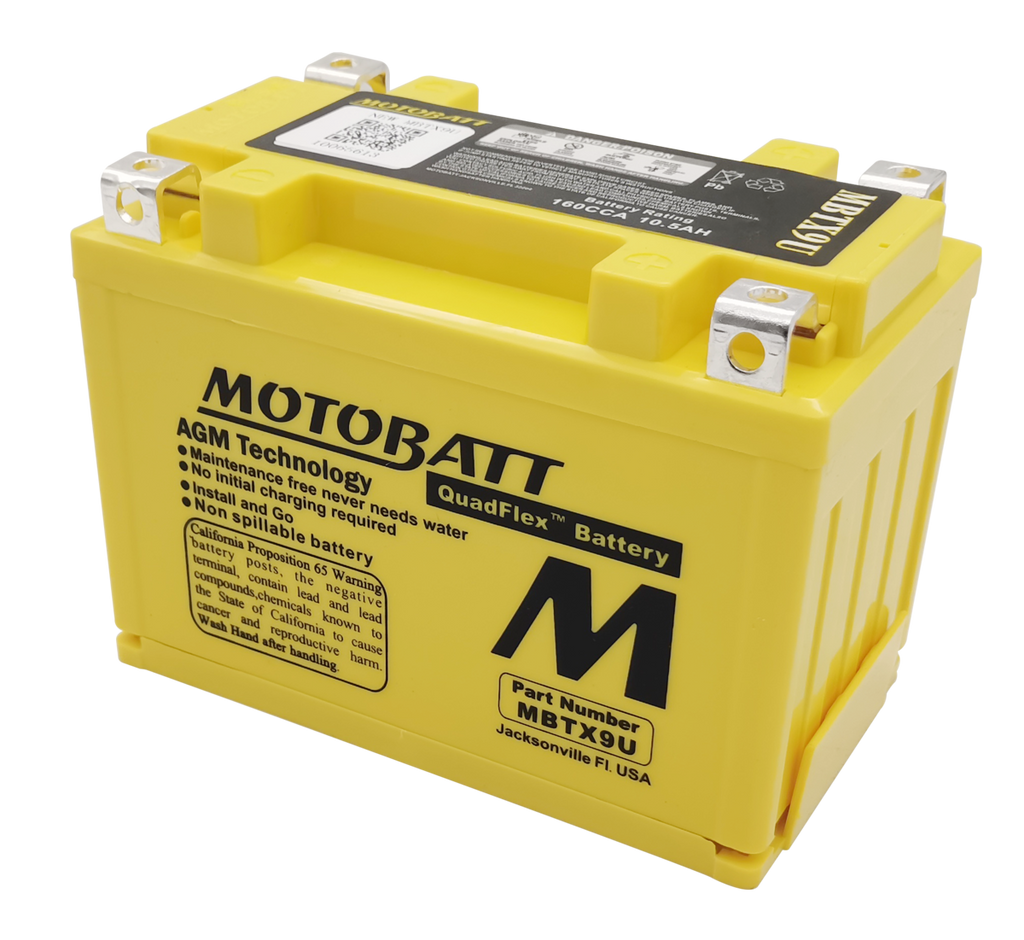

Motobatt Quadflex batteries , the first and unique 4 terminal system, proposes the best balance between CCA and Amp hour capacity. Due to utilizing the wasted space inside a standard battery case, Motobatt maximizes the dimensions of the plates internally. Additionally the plate grids are made thicker, and that with the additional density of the pasting improves the Amp Hour capacity, durability and Cold cranking Amps. Motobatt has completely changed the Powersport market by improving an old design.
| Battery Type | MBTX9U | |
|---|---|---|
| Voltage | 12 | |
| CCA | 160 | |
| MCA | 219A | |
| PHCA | 393A | |
| Capacity (10HR) | 10.5Ah, C20 11.1Ah | |
| Weight | 3.40kg / 7.50Ibs | |
| Dimensions (in / mm) | L: 5.94(151) W: 3.43(87) H: 4.13(110) TH:4.13(110) | |
| Assembly Figure Terminal Locations | 4 |  |
| Terminals | 2x Blocknut M6 (PART MPN2) | |
| Screws | 2x Screws M6x12 (PART MPS4) | |
| Spacer | 1, 5mm Bottom (Part#MPBS1) | |
