Product Details
| Model No | RV12100 | ||
| Inventory Code | 63000-110 | ||
| Categories |
Lithium Ion Batteries Lithium Iron Phosphate Battery Packs 12 Volt Series LiFePO4 Pylontech Stand Alone Batteries Lithium Iron Phosphate Modules |
||
| Selling Unit | EACH | ||
| Description | 12.8V 100Ah 1280Wh 4S4P LiFePO4 Battery + SoC Indicator + M8 Terminals (Max 2S OR 8P) + IP20 Rating | ||
| Application | Lead Acid Replacement, Marine Storage, Caravan/RV Storage, Industrial Market Applications, Deep Cycle | ||
| Chemistry | Lithium Iron Phosphate (LiFePO4) | ||
| Voltage | 12.8V | ||
| Nominal Capacity | 100Ah | ||
| Watt Hour | 1280.0Wh | ||
| Maximum Continuous Discharge Current |
100A | ||
| Termination | M8 | ||
| Size | 4S4P | ||
| Width | 300mm | ||
| Height | 220mm | ||
| Length/Breadth/Depth | 173mm | ||
| Weight | 14050g | ||
| Brand |  |
||

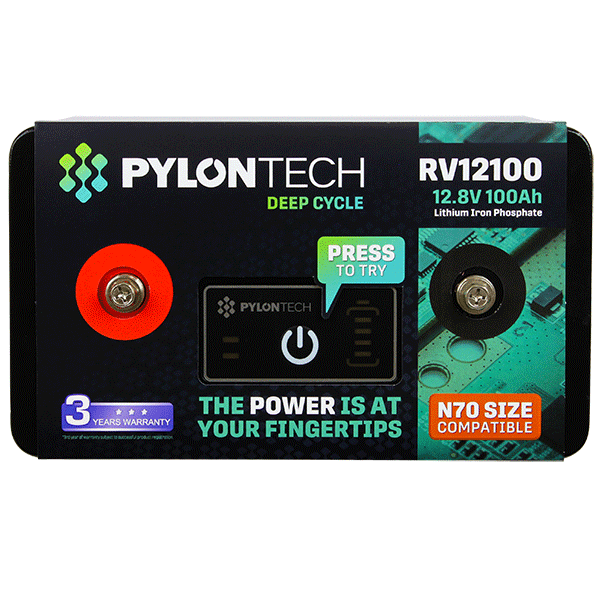

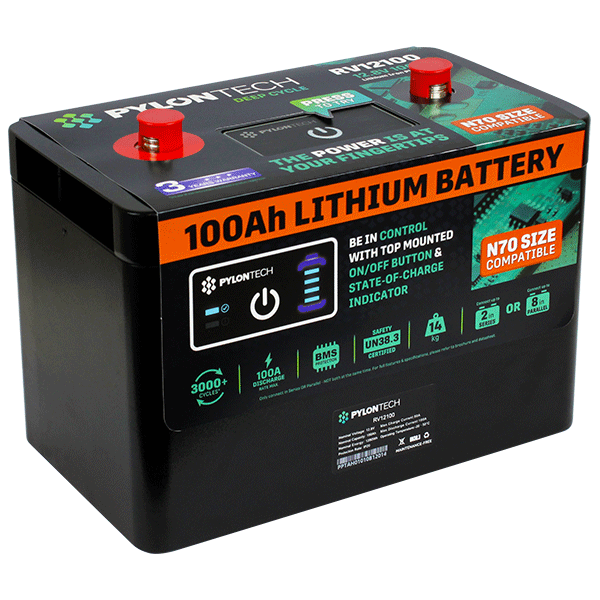

12V 100Ah Lithium Iron Phosphate battery with push button State-of-Charge indicator. Ideal for sealed lead battery replacement.
The Pylontech RV12V Series are the newly developed all-purpose lithium iron phosphate battery modules, designed for energy storage applications. With the cutting edge LFP (Lithium Iron Phosphate) cells, embedded BMS (Battery Management System) and mechanical design, Pylontech RV12V Series product provides inherent safety, extremly high reliability and zero maintenance.
Compared to the same capacity lead-acid based batteries, it has more than twice of the usable capacity, more than 3 times of the life cycle, but only about 40% of the weight. It is a perfect replacement for lead acid batteries used in Deep Cycle applications such as marine, RV, golf carts and solar storage.
The RV12100 is made from 4S4P combination of LiFePO4 Pouch type cells and can be used in any orientation unlike other batteries which may only be used with terminals facing upwards.
A unique feature with this battery is that it is "Array-Aware". That means it knows other batteries are on the bus and only turns on when it senses another battery in parallel or a charger.
Specifications:
| Cycle life | >3000 cycles (90% DoD) @ 25ºC |
| Max. continuous discharge current: | 100A |
| Charge voltage: | 14.2V - 14.6V (14.4V recommended) |
| Max. continuous charge current: | 50A |
| Discharge Cut-Off Voltage: | 10V |
| Operating Discharge temperature: | -15°C to +50ºC |
| Operating Charge temperature: | -0°C to +50ºC |
| Storage temperature: | -20°C to +60ºC |
| State of Charge Display | Yes |
| Short Circuit Protection | Yes |
| Rating: | IP20 Rating |
| Series* Connection Allowed: | Up to 2S |
| Parallel* Connection Allowed: | Up to 8P (Max. continuous discharge current 0.5C when in Parallel) |
| Case Structure | Rugged mechanical design |
| Safety | UN38.3 Approved |
| Warranty | 3 Years |
| Size | Perfect fit in N70 size battery box |
* No Connection of Series & Parallel Concurrently Allowed (Only either of the above)
 |
This product is certified to UN38.3 This battery has been tested & complies with the UN Model Regulation, Manual of Test & Criteria, Part III, Subsection 38.3 |
