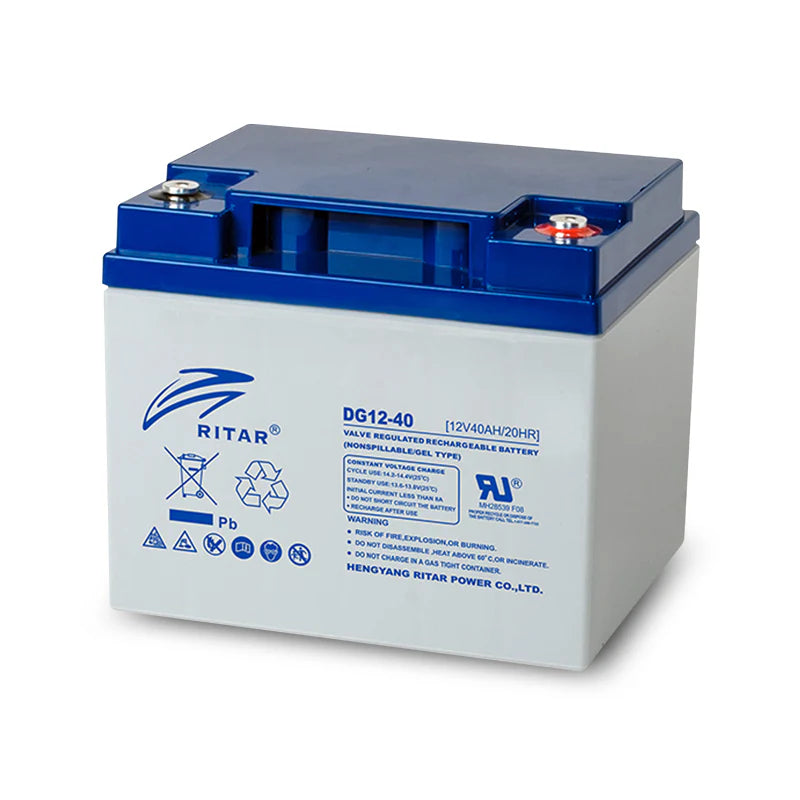

RITAR DG12-40 12V33AH DEEP CYCLE GEL BATTERY
The DG (Deep Cycle GEL) series is a pure GEL battery with a 15~20 years floating design life, making it ideal for standby or frequent cyclic discharge applications under extreme environments. By using strong grids, high purity lead, and patented Gel electrolyte, the DG series offers excellent recovery after deep discharge under frequent cyclic discharge use and can deliver 400 cycles at 100% DOD.
Suitable for solar, CATV, marine, RV, and deep discharge UPS, communication, and telecommunication, etc. Explore our energy storage battery DG series technical features specifications for more details.
Pure GEL battery with 15-20 years life.
Features
- Voltage class: 2V/6V/12V.
- Capacity range: 26Ah~3000Ah.
- Designed for frequent cyclic charge and discharge applications under extreme environment.
- Suitable for solar & wind energy, UPS, telecom systems, electric power systems, control systems, golf cars, etc.
- Patented primary and secondary grid structure design.
- High Porosity PE separator with glass fibre.
- Safety valve equipped.
- High strength battery container.
Specifications:
- Cells Per Unit: 6
- Voltage Per Unit: 12
- Capacity: 40Ah@20hr-rate to 1.75V per cell @25℃
- Weight: Approx. 12.4 Kg (Tolerance±3.0%)
- Internal Resistance: Approx. 12.0 mΩ
- Terminal: F4(M5)/F11(M6)
- Max. Discharge Current: 400A (5 sec)
- Design Life: 15 years (floating charge)
- Max. Charging Current: 8.0 A
- Reference Capacity:
- C3 27.3AH
- C5 30.8AH
- C10 35.2AH
- C20 40.0AH
- Float Charging Voltage
- 13.6 V~13.8 V @ 25℃
- Temperature Compensation: -3mV/℃/Cell
- Cycle Use Voltage
- 14.2 V~14.4 V @ 25℃
- Temperature Compensation: -4mV/℃/Cell
- Operating Temperature Range:
- Discharge: -20℃~60℃
- Charge: 0℃~50℃
- Storage: -20℃~60℃
- Normal Operating Temperature Range: 25℃±5℃
- Self Discharge: RITAR Valve Regulated Lead Acid (VRLA) batteries can be stored for up to 6 months at 25℃ and then recharging is recommended. Monthly Self-discharge ratio is less than 3% at 25℃.Please charge batteries before using.
- Container Material A.B.S. UL94-HB, UL94-V0 Optional
Dimensions:
Constant Current Discharge Characteristics : A (25℃)
Constant Power Discharge Characteristics : WPC (25℃)
