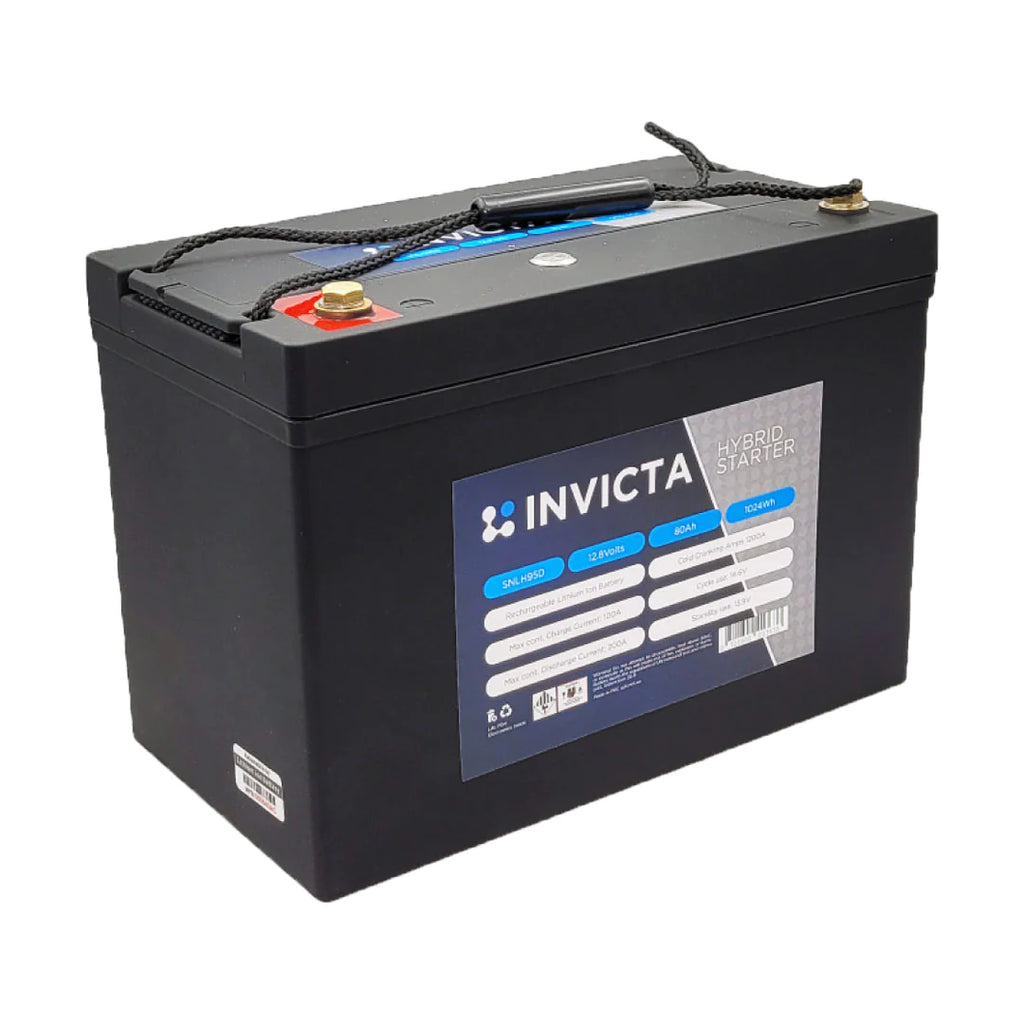

Invicta Hybrid Starter Lithium Battery 80Ah 95D - SNLH95D ( N70ZZ )

: In stock

: Lithium Starter Hybrid

: Invicta

$1,459.00 $1,799.00

The Invicta SNLH95D is a high-performance 12.8V lithium iron phosphate (LiFePO₄) battery designed for dual-purpose use: starting and deep-cycle applications. Engineered with...

QUESTIONS & ANSWERS

Have a Question?

Be the first to ask a question about this.

Ask a Question

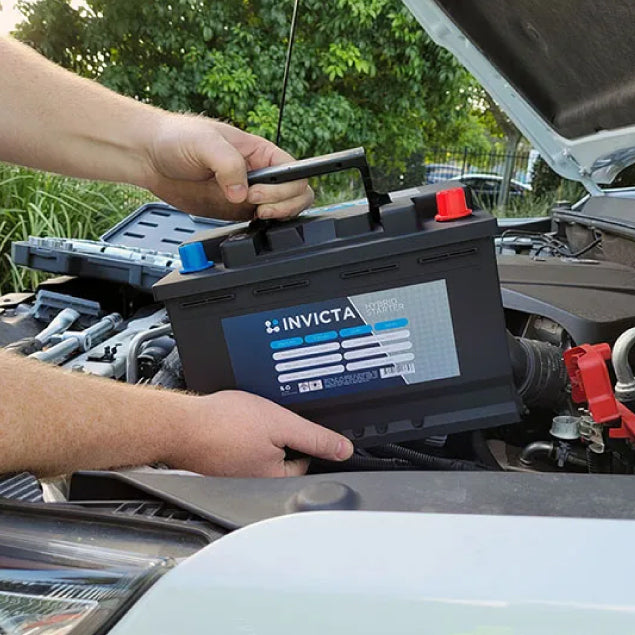

The Invicta SNLH95D is a high-performance 12.8V lithium iron phosphate (LiFePO₄) battery designed for dual-purpose use: starting and deep-cycle applications. Engineered with A123 pouch cell technology, it offers exceptional cold cranking amps (CCA), rapid recharge capabilities, and the flexibility to power both starting and auxiliary loads like fridges or marine accessories. Its compact size and robust features make it an ideal choice for under-bonnet installations in 4WDs and other off-road vehicles.


 Features

  • Australian Owned: Backed by over 25 years of expertise and over 2 years of pre-release development by an Australian technical team.
  • Integrated BMS: A specially engineered Battery Management System (BMS) allows the battery to discharge and charge at a high rate, even when using the reserve capacity.
  • Pouch Cell Construction: Utilizes A123 pouch cells, known for their high-rate discharge capabilities and flexibility in charging.
  • Direct Alternator Charging: Designed to be charged directly from the vehicle's alternator.
  • Heat-Resistant Technology: Features a specially designed thermal protection layer to reduce the impact of heat on the internals.
  • Jump Start Feature: A small percentage of capacity is reserved automatically for jump-starting if the battery is drained. Easily engage this feature with the push of a button.
  • 3-Year Full Replacement Warranty: Provides peace of mind with a comprehensive warranty.

 Specifications

Feature Specification
Nominal Voltage 12.8V
Nominal Capacity 80Ah (250C, 0.33C)
Cold Cranking Amps (CCA) 1200A
Max. Discharge Current 200A
Max. Pulse Discharge (3 sec) 1200A
Max. Charge Current 100A
Recommended Charge Current <30A
Max. Charge Voltage 14.6V ± 0.1V
Charge Cut-Off Voltage 15.6V ± 0.1V
Discharge Cut-Off Voltage 8V
Cycle Life (100% DoD) >2000 cycles
Operating Temp (Charge) -20°C to +45°C
Operating Temp (Discharge) -20°C to +60°C
BMS High Temp Disconnect 80°C
Max. Parallel Configuration 6P
Jump Start Feature Yes
IP Rating IP56
Certifications IEC62133, UN38.3
Dimensions (L x W x H) 305mm x 172mm x 203/224mm
Weight 10.2kg
Terminal Type M8 Insert
