Product Details
| Selling Unit | EACH |
|---|---|
| Model No | SmartSolar MPPT 150/100-Tr VE.Can |
| Inventory Code | 64900-343A |
| Brand |  |
| Original Brand | Victron Energy SCC115110411 |
| Description | 12V/24V/36V/48V 100A CAN-bus Smart Solar Charge Controller MPPT Type SCC115110411 |
| Voltage | 12/24/36/48V |
| Size | 100A |
| Width | 295mm |
| Height | 216mm |
| Length / Breadth / Depth | 103mm |
| Weight | 4.5kg |

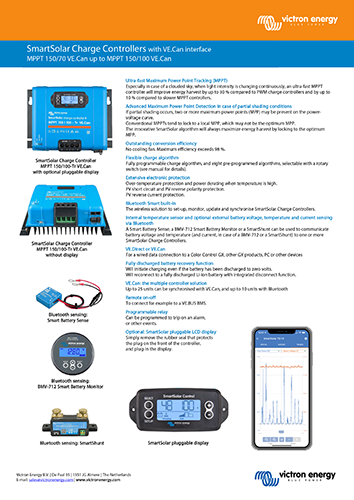

| Data Sheet |

|
| Categories |
Solar Charge Controllers/Regulators MPPT Type Solar Controllers Mountable Chargers Power Products & Accessories DC Solar Conversion SmartSolar Range |
Replaces discontinued SCC115110410
Ultra-fast Maximum Power Point Tracking (MPPT)
Especially in case of a clouded sky, when light intensity is changing continuously, an ultra-fast MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.
Advanced Maximum Power Point Detection in case of partial shading conditions
If partial shading occurs, two or more maximum power points (MPP) may be present on the power-voltage curve. Conventional MPPTs tend to lock to a local MPP, which may not be the optimum MPP.
The innovative SmartSolar algorithm will always maximize energy harvest by locking to the optimum MPP.
Outstanding conversion efficiency
No cooling fan. Maximum efficiency exceeds 98%.
Flexible charge algorithm

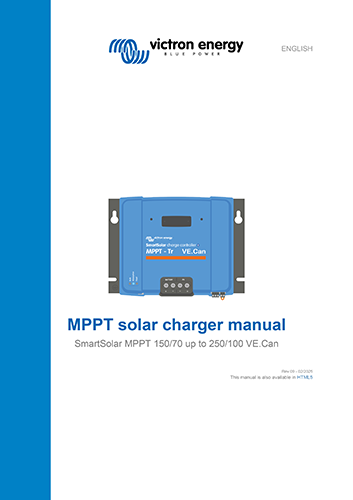

Fully programmable charge algorithm, and eight pre-programmed algorithms, selectable with a rotary switch (see manual for details).
Extensive electronic protection
Over-temperature protection and power derating when temperature is high.
PV short circuit and PV reverse polarity protection.
PV reverse current protection.
Bluetooth Smart built-in
The wireless solution to set-up, monitor, update and synchronise SmartSolar Charge Controllers.
Internal temperature sensor and optional external battery voltage and temperature sensing via Bluetooth
A Smart Battery Sense or a BMV-712 Smart Battery Monitor can be used to communicate battery voltage and temperature to one or more SmartSolar Charge Controllers.
VE.Can: the multiple controller solution
Up to 25 units can be synchronised with VE.Can
VE.Direct or VE.Can
For a wired data connection to a Color Control GX, other GX products, PC or other devices
Remote on-off
To connect for example to a VE.BUS BMS.
Programmable relay
Can be programmed to trip on an alarm, or other events.
Optional: LCD display
