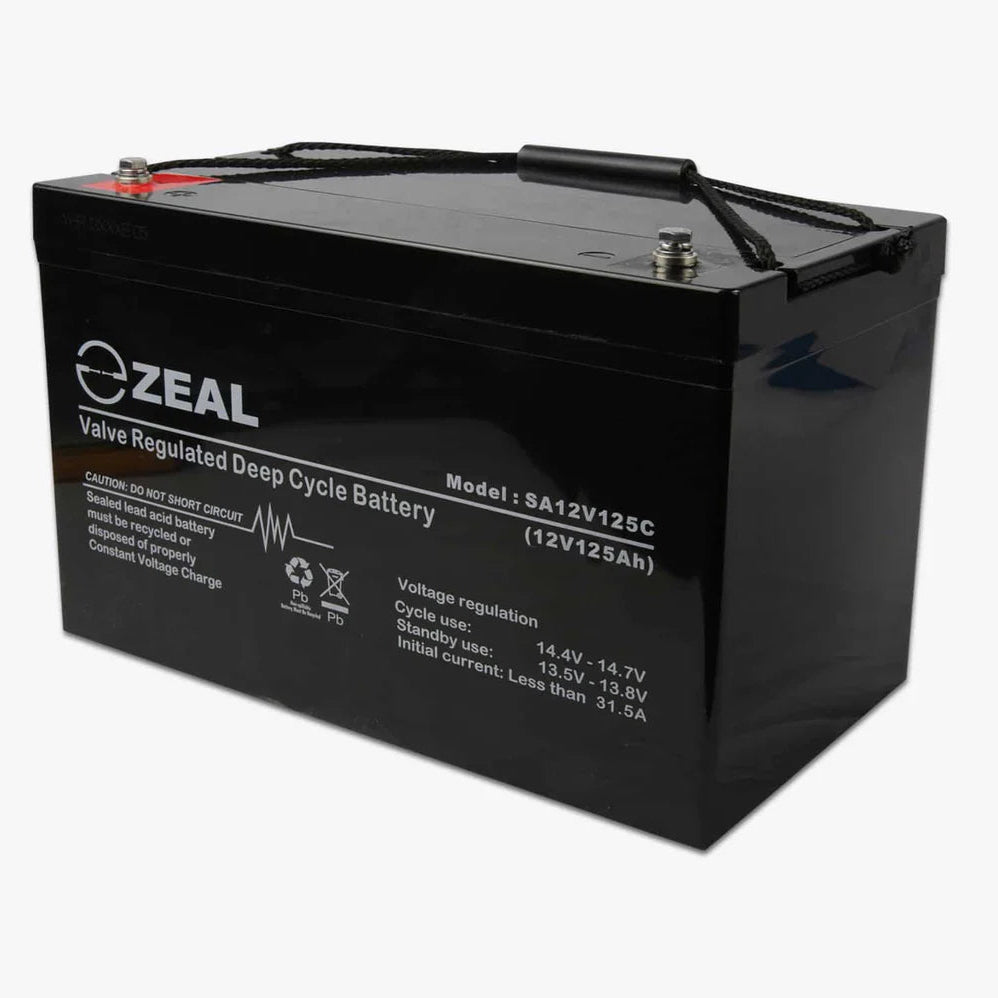

Zeal 125AH Deep Cycle AGM Battery – SA12V125C / C12-125XDA
The Zeal AGM range is a quality range ideally suited for a wide range of general purpose and cost critical applications. This range has very low internal resistance, is capable to deliver high currents on demand and offers a relatively long service life, even when deep cycled. The AGM range is maintenance and spill free, provides strong reliability with a low self-discharge.
Specifications
- AH: 125 Volts: 12
- (mm) Length: 330 Width: 172 Height 220
- Warranty: 12 months
Feature & Benefits
- Absorbent Glass Mat (AGM) technology for efficient gas recombination and maintenance free
- Designed for a a range of standby and cycling products
- Range of sizes from 6V4.5Ah to 12V125Ah
- 5 year design life
- Low self discharge
- 12 month warranty
Applications
- All purpose
- Standby Applications
- Recreation Vehicles
- Uninterruptible Power Supply (UPS)
- Electric Power System (EPS)
- Fire & Security
- Generators
- Medical Equipment
Specifications
Dimensions
Nominal Voltage
Nominal Capacity 20HR/CCA
Approx Weight
Terminal
Container Material
Lead Material
Sulfurid Acid
Separator
Max. Discharge Current
Internal Resistance
Nominal Operating Temp.Range
Operating Temp.Range
Cycle Use
Standby Use
Capacity affected by Temperature
Self Discharge
Approx 30.0 kg
M6
ABS Plastic
Purity Lead 99.995%
1200A (5s)
25±3°C (77±5°F]
Approx 4.9mΩ
Distilled Sulfurid Acid (Zero metal content)
AGM
12 V
125AH/700CCA
Dimensions
Rated Capacity
Length 330±1mm (12.99 inches)
Width 172±1mm (6.77 inches)
Container Height 217±1mm (8.54 inches)
Total Height (with terminal) 220±1mm (8.66 inches)
Discharge : -15 - 50°C (5 - 122°F)
Charge : 0 - 40°C (32 - 104°F)
Storage : -15 - 40°C (5 - 104°F)
Initial Charging Current less than 36.0A. Voltage
14.4V - 14.7V at 25°C (77°F) Temp.Coefficient -30mV/°C
Zeal AGM series batteries may be stored for up to 6 months
at 25°C (77°F) and then a freshening charge is required.
For higher temperatures the time interval will be shorter.
No limit on Initial Charging Current Voltage
13.5V - 13.8V at 25°C (77°F) Temp.Coefficient -20 mV/
