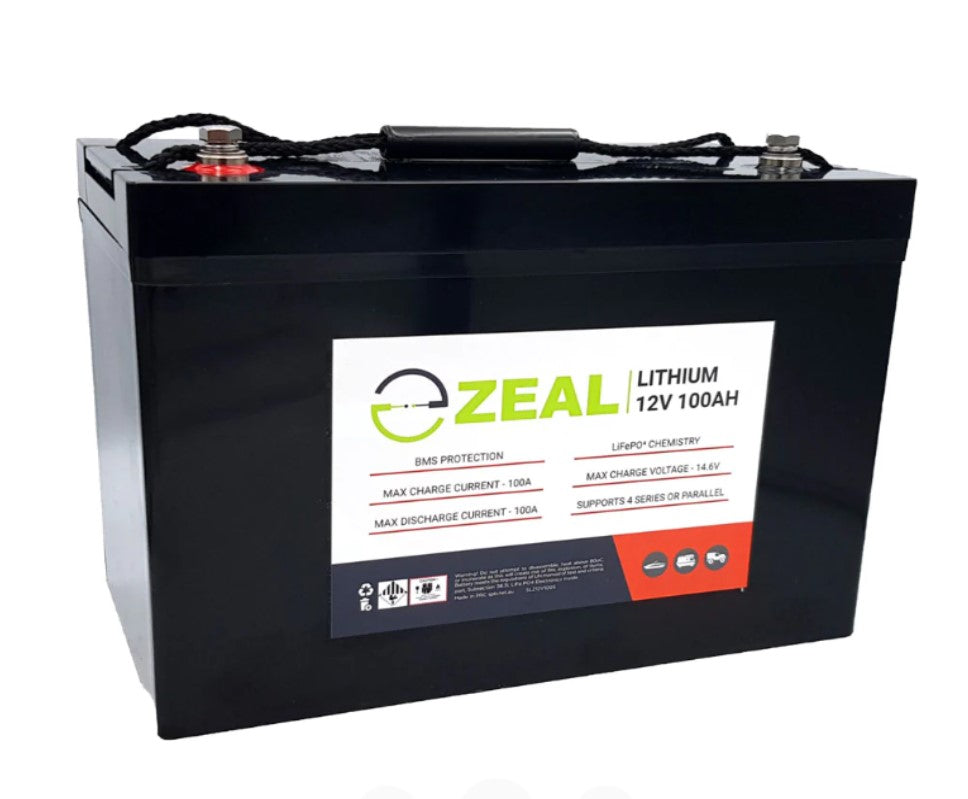

Zeal Lithium 12V 100Ah LiFePO4 Battery - SLZ12V100S

Availability: In stock

Product type: Battery

Vendor: Zeal

$895.00 ~~$999.00~~

Zeal Lithium Series Zeal lithium is an economical 12V Lithium Iron Phosphate (LiFePO4) solution by Sealed Performance Batteries (SPB) which provides the...

QUESTIONS & ANSWERS

Have a Question?

Be the first to ask a question about this.

Ask a Question

Zeal Lithium Series

Zeal lithium is an economical 12V Lithium Iron Phosphate (LiFePO4) solution by Sealed Performance Batteries (SPB) which provides the core performance and safety advantages of a modern lithium battery in a sturdy design.

Backed by SPB, a company with over 25 years of experience in the energy storage industry, and designed to the best possible specifications, you can be confident that Zeal lithium has had every detail thoroughly examined in delivering a high-value solution.

Core Lithium Advantages

A perfect AGM replacement, Zeal comes complete with a 3-year warranty and all the features you would expect from a LiFePO4 product including fast recharge capabilities, low self-discharge rate, long runtime and more usable capacity for power when you need it most.

Need a larger solution? Up to 4 batteries can also be connected in parallel or series configurations to meet the needs of more
demanding systems.

Specifications
Nominal Voltage 12.8V
Nominal Capacity (25o
C, 0.33C) 200Ah
Dimensions
Length 483±3mm
Width 170±3mm
Height 241±3mm
Total Height 241±3mm
Approx. Weight 26.1kg

Characteristics
Terminal type M8
Max Charge Voltage 14.6V±0.2V
Standby Voltage 13.8±0.2V
Cut-off Voltage 10V
Max. Discharge Current 200A
Max Pulse Discharge Current (3 sec) 400A
Max Charge Current 150A
Recommended Charge Current < 100A
Cycle Life (100% DoD) 1800+
Operating Temp - Charge 0o
C - 45ºC
Operating Temp - Discharge -20ºC - 60ºC
Short Circuit Release Yes
Max. Series / Parallel Configuration 4S or 4P
Cell Type Prismatic
Cell Chemistry Lithium Iron Phosphate (LiFePO4)
BMS Protection Yes
Warranty 3 Years

Applications
• Deep-cycle
• 4x4 Vehicles
• Recreational Vehicles
• Caravan / Camping
• Fast Recharge Requirements
• Low Weight Applications
• Marine
• Golf Carts
• Personal Power
• Non-Starting
