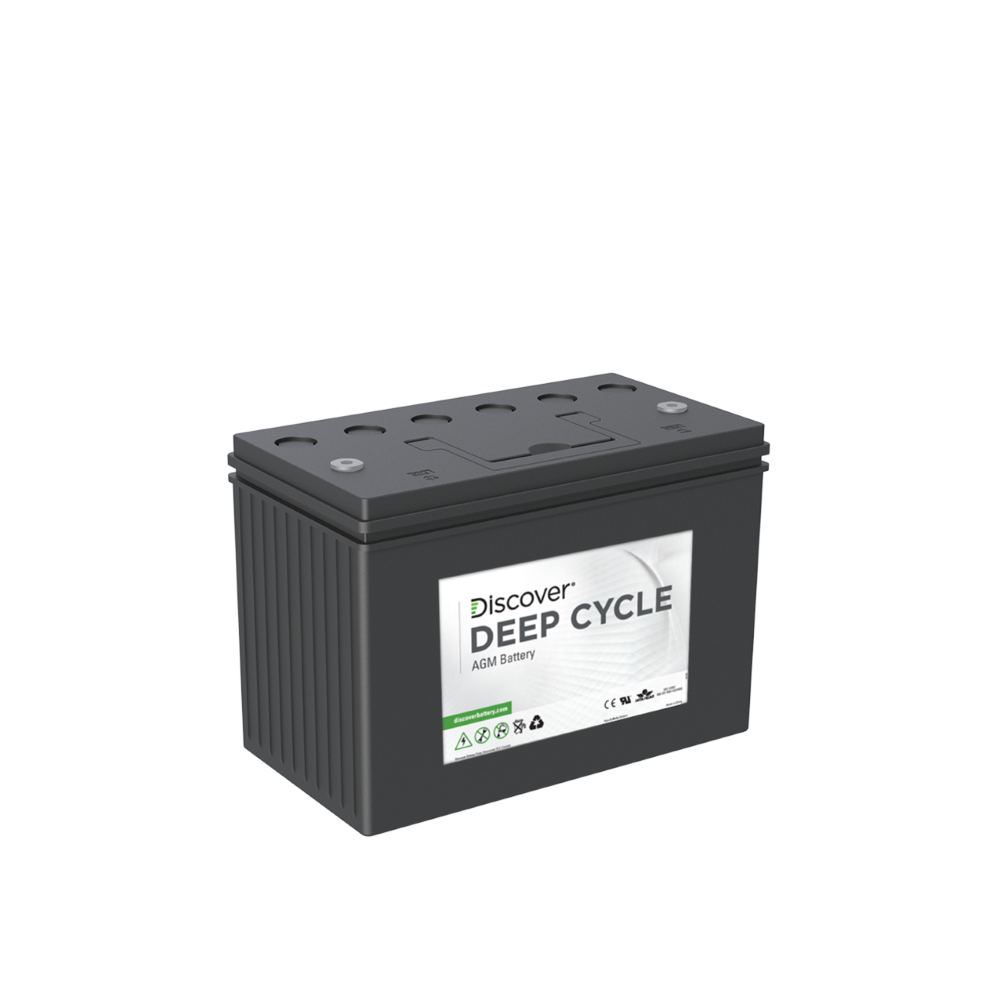

AGM Deep Cycle Cyclic Battery
Discover® VRLA AGM Deep Cycle batteries deliver deep-cycle and cyclic discharging for a general range of stationary applications such as backup power, solar, and renewable energy storage. The batteries are maintenance-free, safe, easy to use and a start to reducing energy cost and grid dependence.
MECHANICAL SPECIFICATIONS
| Industry Reference | BCI: 27 JIS1: D31R | |
| Length A (in/mm) | 12.1 | 308 |
| Width B (in/mm) | 6.8 | 172 |
| Height C (in/mm) | 8.3 | 212 |
| Total Height D (in/mm) | 8.4 | 214 |
| Weight (lbs/kgs) | 61 | 27.8 |
| Terminal * | F10M8 | |
| Technology | AGM | |
NOTE 1: Dimensions have a ±2 mm (0.08 in) tolerance. Weights may vary.
NOTE 2: Refer to terminal guide on website for torque values.
ELECTRICAL SPECIFICATIONS
| Voltage (V) | 12 | |
| Internal Resistance (mΩ) | 4.44 | |
| Short Circuit (A) (20°C / 68°F) | 2700 | |
| Self-Discharge (20°C / 68°F) | 2-3% per month | |
| Charge Temperature | Min: -10°C (14°F) | Max: 50°C (122°F) | |
| Discharge Temperature | Min: -40°C (-40°F) | Max: 50°C (122°F) | |
| Storage Temperature | -20°C (-4°F) to 60°C (140°F) | |
NOTE 3: Extra considerations must be given when designing systems for use at maximum temperatures.
NOTE 4: Internal Resistance and Short Circuit is approximate.
PERFORMANCE SPECIFICATIONS
| Amp Hours (AH) | ||
|---|---|---|
| 5 HR | 10 HR | 20 HR |
| 82 | 94 | 100 |
Capacities: 1.75VPC at 30°C/86°F
| Minutes of Discharge | Cranking Amps | ||
|---|---|---|---|
| @25A | @75A | CA (0°C/32°F) | CCA (-18°C/0°F) |
| 180 | 43 | 830 | 690 |
Applications:
Transportation
Automotive Fleet
Marine
RV/Caravan
Truck
Work Vehicle
Motive Power:
Mobile Elevating Work Platforms
Utility EV & Golf Cart
Floor Care:
Material Handling
AGV & AMR
Solar Energy Storage
Energy Storage & Backup Power
