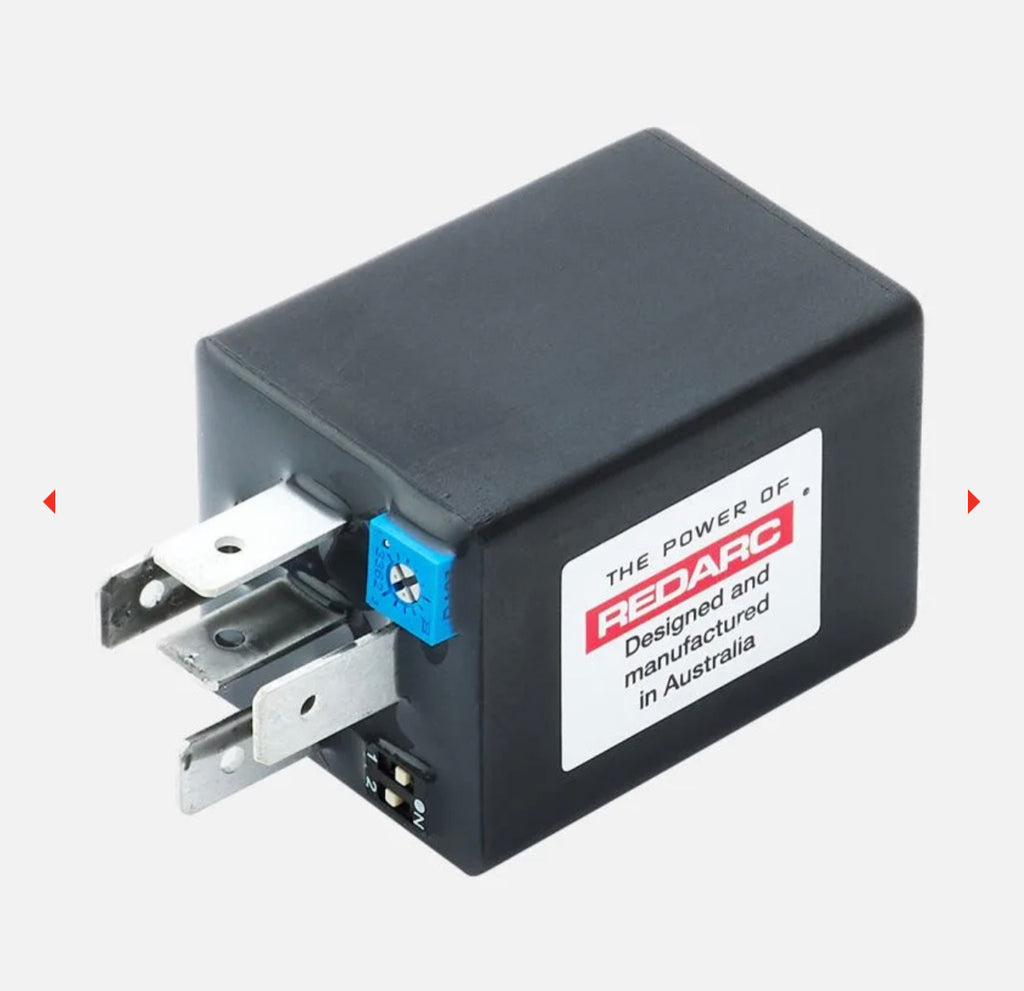

REDARC MULTI FUNCTION TIMER RELAY 10A 12V OR 24V
$195.00
$229.00
Category:
Product Details
The TIM05 & TIM06 timers can be used in a 12V or 24V negative ground automotive system, are designed to plug into a standard automotive relay base and have the same pin numbers as a standard automotive relays (underside shown on diagram). Contacts operate in a similar way to a changeover relay.
- The timer switches the internal relay to provide output on PIN 87. (Positive output only)
- The timer is started by switching pin PIN 86 ON or OFF (depending on Switch 1).
- Use Switch 2 to select time range between SECONDS and MINUTES.
- Use the potentiometer to adjust time (increasing in clockwise direction).
The TIM05 & TIM06 can supply a maximum current of 10 AMPS.
FEATURES
- User adjustable 1- 60 seconds/minutes
- Change over type relay
- Standard automotive relay base
- Fully customisable upon request
Specifications
GTIN_BARCODE 9338628001682
BRAND REDARC
WEIGHT 70 g
HEIGHT 30 mm
WIDTH 24 mm
DEPTH | LENGTH 75 mm
WARRANTY 2 Years
INPUT VOLTAGE 12V / 24V
MAX. RATED OUTPUT CURRENT 10A
